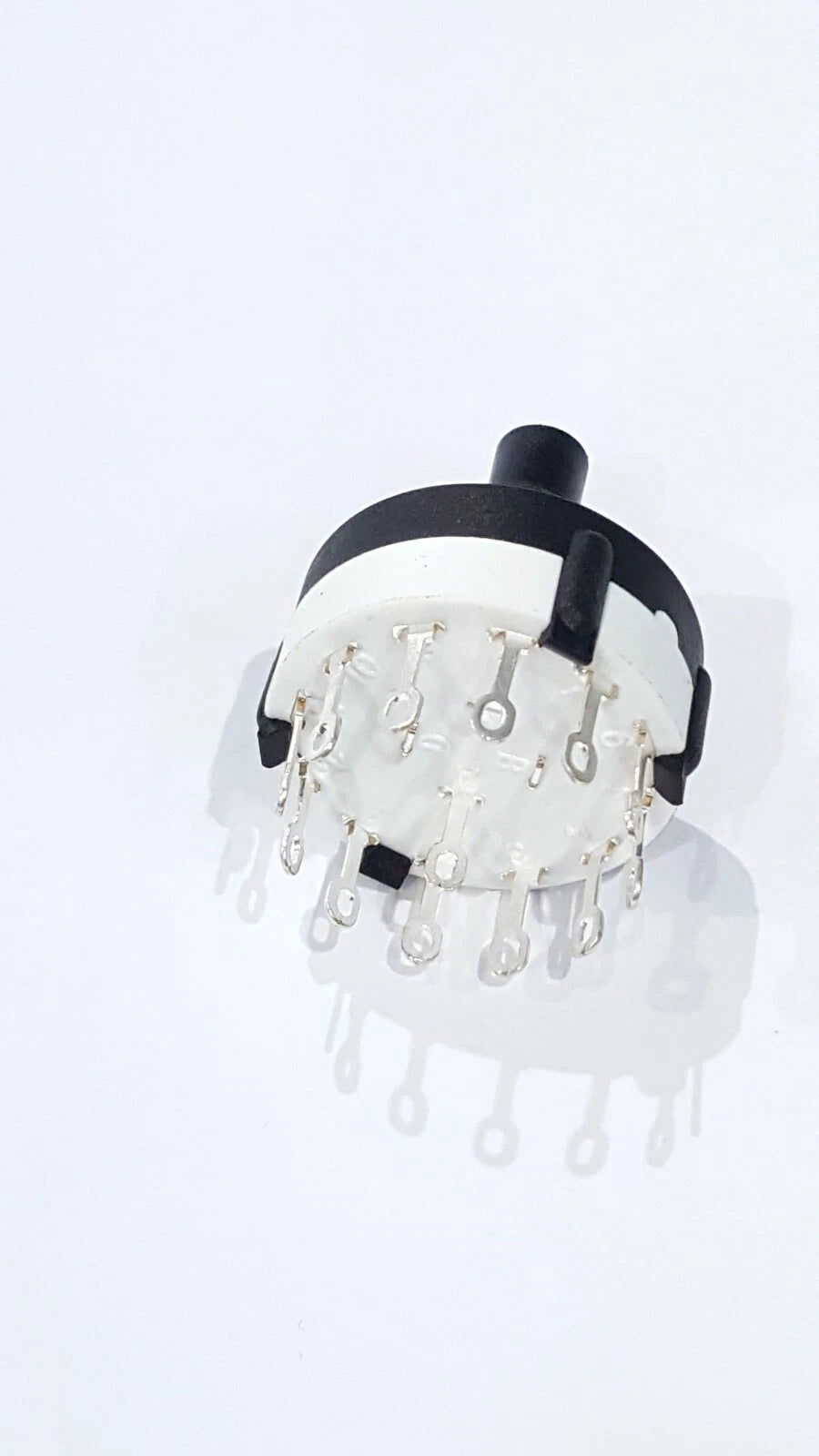

Rotary Switch Panel Mount 12 Way Solder 12v 250V ac/dc Arduino through hole

2 to12 way (break before make ) rotary switch . The amount of switch positions is controlled by the position you fit the tab washer. Contact Configuration SP Contact Current Rating 150 mA @ 250 V ac Number of Switch Positions 12 Number of Contacts 1 Voltage Rating 250 V ac, 250 V dc Depth 26.5mm Width 26.5mm Mounting Type PCB Terminal Type Through Hole Maximum Operating Temperature +85°C Minimum Operating Temperature -30°C Contact Material Silver Plated Brass Height 37mm Posted same day 1st class royal mail . If you have any questions please ask we can normally respond within the hr 7 days a week .
