6 Terminal CH24450 24450BX 31-8970 12v ATV WINCH MOTOR SOLENOID REVERSING RELAY
$28.99
BRAND NEW AFTERMARKET REPLACEMENT ATV WINCH MOTOR REVERSING SOLENOID RELAY
SIX TERMINAL 12 VOLT
REPLACES COLE HERSEE # CH24450 #CH24450BX
- For Winch Motors, Snow Plow & Spreader Motors, Windlasses, Hydraulic Pump Motors & More!
- 12 Volt, 150 surge amps, 75 amps for 5 minutes
- 6 Terminal Continuous
- Four 5/16"-24 threaded studs, Two 1/4" male blade terminals
- Only Works With Permanent Magnet Motors
- Replaces Part Number: 24450BX, 214-1211A11, 214-1231-A11, 2141211A51, 2141211A61, 214-1211A11-06

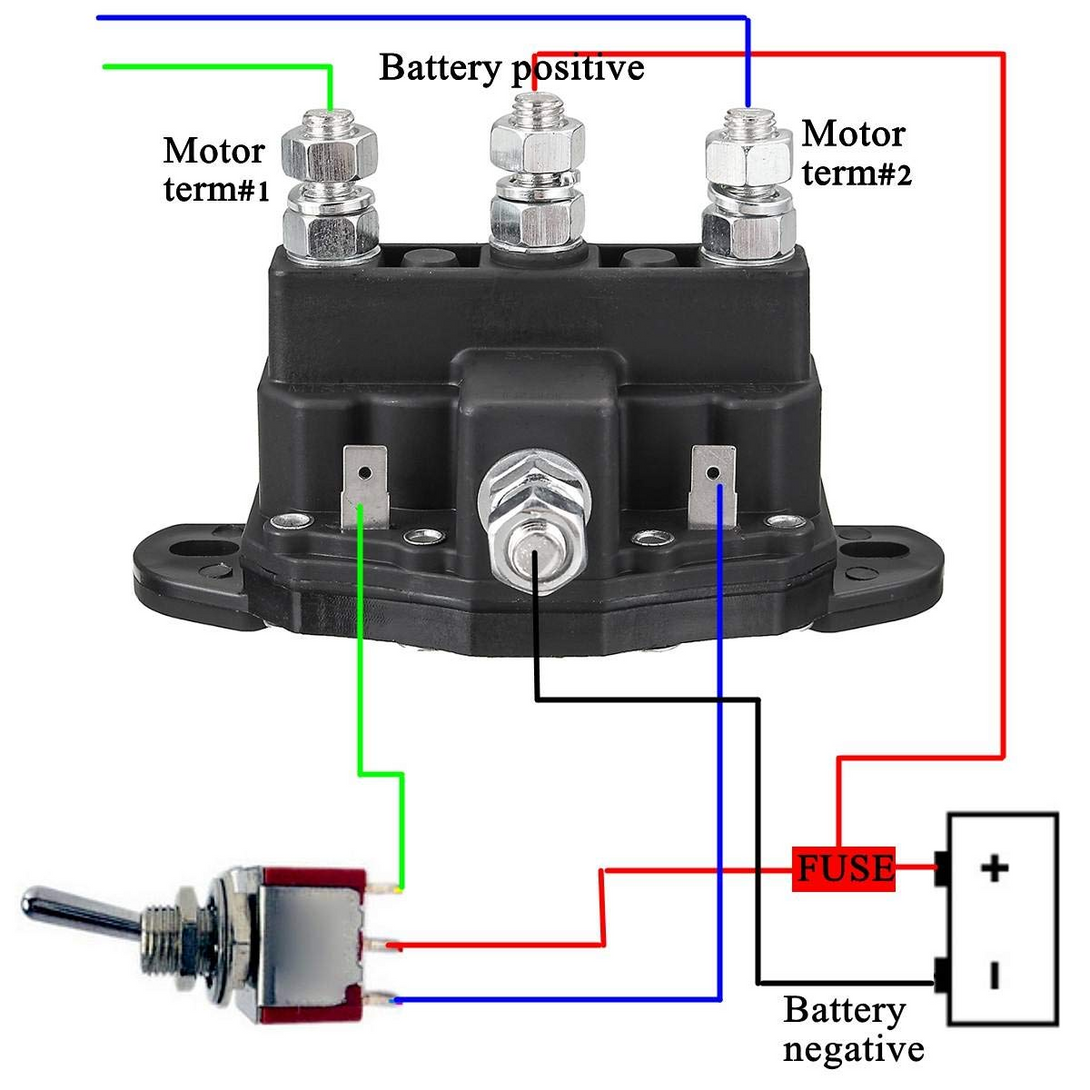

- This solenoid is used to reverse polarity on Permanent Magnet winch motors with 2 terminal posts.
- 75 amps for 5 minutes: allow 5 minute cool down time after pushing solenoid to the maximum limit.
- Note: This solenoid is only suitable for permanent magnet motors. Not suitable for old style motors with copper winding field.
- 6 Terminal Continuous: 4X - 5/16"-24 threaded studs, 2X - 1/4" male blade terminals
